> 微信小程序开发教程手册 > 微信小程序 WeUI.js

目录

  • 1 概述
  • 2 使用方法
    • 2.1 安装
    • 2.2 开发
  • 3 元素类型
    • 3.1 Button
    • 3.2 Cell
    • 3.3 Dialog
    • 3.4 Progress
    • 3.5 Toast
    • 3.6 Msg Page
    • 3.7 Article
    • 3.8 ActionSheet
    • 3.9 Icon
  • 4 技术支持与反馈

概述

WeUI 是一套同微信原生视觉体验一致的基础样式库,由微信官方设计团队为微信内网页开发量身设计,可以令用户的使用感知更加统一。在微信网页开发中使用 WeUI,有如下优势:

  • 同微信客户端一致的视觉效果,令所有微信用户都能更容易地使用你的网站
  • 便捷获取快速使用,降低开发和设计成本
  • 微信设计团队精心打造,清晰明确,简洁大方

该样式库目前包含 button、cell、dialog、progress、toast、article、icon 等各式元素,已经在 gitHub 上开源。访问 Http://weui.github.io/weui/ 或微信扫码即可预览。

微信小程序 WeUI.js

使用方法

安装

方法一:使用bower进行安装

bower install --save weui

方法二:使用npm进行安装

npm install --save weui

任选一种方法安装后,只需要在页面中引入 dist/style/weui.css 或者 dist/style/weui.min.css 其中之一即可。例如:

<!DOCTYPE HTML>
<html lang="en">
    <head>
        <meta charset="UTF-8">
        <meta name="viewport" content="width=device-width,initial-scale=1,user-scalable=0">
        <title>WeUI</title>
        <link rel="stylesheet" href="path/to/weui/dist/style/weui.min.css"/>
    </head>
    <body>

    </body>
</html>

开发

git clone https://github.com/weui/weui.git
cd weui
npm install -g gulp
npm install
gulp -ws

运行 gulp -ws 命令,会监听 src 目录下所有文件的变更,并且默认会在8080端口启动服务器,然后在浏览器打开 http://localhost:8080/example。


元素类型

Button

按钮可以使用 a 或者 button 标签。wap 上要触发按钮的 active 态,必须触发 ontouchstart 事件,可以在 body 上加上 ontouchstart="" 全局触发。

按钮常见的操作场景:确定、取消、警示,分别对应 class:weui_btn_primaryweui_btn_defaultweui_btn_warn,每种场景都有自己的置灰态weui_btn_disabled,除此外还有一种镂空按钮 weui_btn_plain_xxx,客户端 webview 里的按钮尺寸有两类,默认宽度100%,小型按钮宽度自适应,两边边框与文本间距0.75em:

微信小程序 WeUI.js

<a href="#" class="weui_btn weui_btn_primary">按钮</a>
<a href="#" class="weui_btn weui_btn_disabled weui_btn_primary">按钮</a>
<a href="#" class="weui_btn weui_btn_warn">确认</a>
<a href="#" class="weui_btn weui_btn_disabled weui_btn_warn">确认</a>
<a href="#" class="weui_btn weui_btn_default">按钮</a>
<a href="#" class="weui_btn weui_btn_disabled weui_btn_default">按钮</a>
<div class="button_sp_area">
    <a href="#" class="weui_btn weui_btn_plain_default">按钮</a>
    <a href="#" class="weui_btn weui_btn_plain_primary">按钮</a>

    <a href="#" class="weui_btn weui_btn_mini weui_btn_primary">按钮</a>
    <a href="#" class="weui_btn weui_btn_mini weui_btn_default">按钮</a>
</div>

Cell

Cell,列表视图,用于将信息以列表的结构显示在页面上,是 wap 上最常用的内容结构。Cell 由多个 section 组成,每个 section 包括 section header weui_cells_title以及 cells weui_cells

Cell 由 thumbnail weui_cell_hd、body weui_cell_bd、accessory weui_cell_ft 三部分组成,cell 采用自适应布局,在需要自适应的部分加上 class weui_cell_primary即可:

微信小程序 WeUI.js

带说明的列表项

<div class="weui_cells_title">带说明的列表项</div>
<div class="weui_cells">
    <div class="weui_cell">
        <div class="weui_cell_bd weui_cell_primary">
            <p>标题文字</p>
        </div>
        <div class="weui_cell_ft">
            说明文字
        </div>
    </div>
</div>

Cell 可根据需要进行各种自定义扩展,包括辅助说明、跳转、单选、复选等。下面以带图标、说明、跳转的列表项,其他情况可以直接参考 example 下的代码:

<div class="weui_cells_title">带图标、说明、跳转的列表项</div>
<div class="weui_cells weui_cells_access">

    <a class="weui_cell" href="#">
        <div class="weui_cell_hd">
            <img src="" alt="icon" style="width:20px;margin-right:5px;display:block">
        </div>
        <div class="weui_cell_bd weui_cell_primary">
            <p>cell standard</p>
        </div>
        <div class="weui_cell_ft">
            说明文字
        </div>
    </a>
    <a class="weui_cell" href="#">
        <div class="weui_cell_hd">
            <img src="" alt="icon" style="width:20px;margin-right:5px;display:block">
        </div>
        <div class="weui_cell_bd weui_cell_primary">
            <p>cell standard</p>
        </div>
        <div class="weui_cell_ft">
            说明文字
        </div>
    </a>
</div>

Dialog

若系统的 alert 窗体无法满足网页的临时视图内容需求,则可以自定义实现与 alert 形式相似的 dialog,并且在 dialog 中可以自定义地使用各种控件,来满足需求。

微信小程序 WeUI.js

<div class="weui_dialog_confirm">
    <div class="weui_mask"></div>
    <div class="weui_dialog">
        <div class="weui_dialog_hd"><strong class="weui_dialog_title">弹窗标题</strong></div>
        <div class="weui_dialog_bd">自定义弹窗内容,居左对齐显示,告知需要确认的信息等</div>
        <div class="weui_dialog_ft">
            <a href="#" class="weui_btn_dialog default">取消</a>
            <a href="#" class="weui_btn_dialog primary">确定</a>
        </div>
    </div>
</div>

微信小程序 WeUI.js

<div class="weui_dialog_alert">
    <div class="weui_mask"></div>
    <div class="weui_dialog">
        <div class="weui_dialog_hd"><strong class="weui_dialog_title">弹窗标题</strong></div>
        <div class="weui_dialog_bd">弹窗内容,告知当前页面信息等</div>
        <div class="weui_dialog_ft">
            <a href="#" class="weui_btn_dialog primary">确定</a>
        </div>
    </div>
</div>

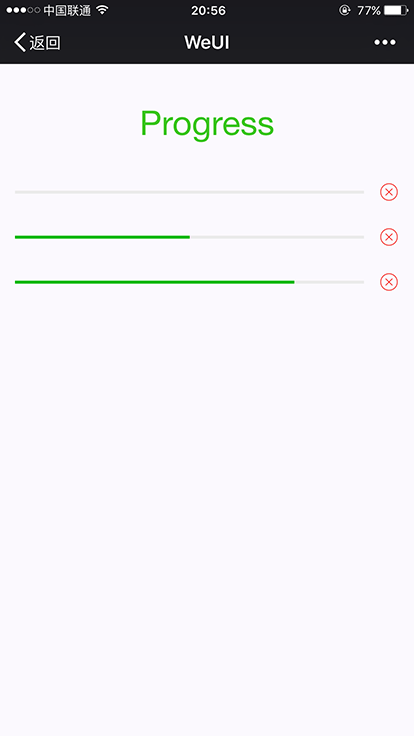

Progress

Progress 用于上传、下载等耗时并且需要显示进度的场景,用户可以随时中断该操作。

微信小程序 WeUI.js

<div class="weui_progress">
    <div class="weui_progress_bar">
        <div class="weui_progress_inner_bar" style="width: 50%;"></div>
    </div>
    <a href="#" class="weui_progress_opr">
        <i class="weui_icon_cancel"></i>
    </a>
</div>

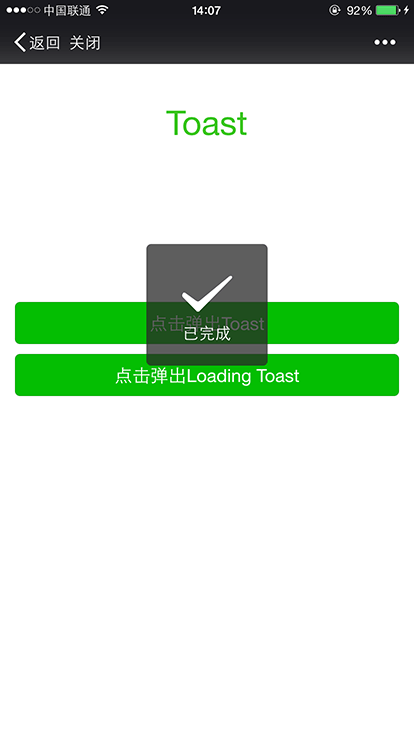

Toast

Toast 用于临时显示某些信息,并且会在数秒后自动消失。这些信息通常是轻量级操作的成功、失败或等待状态信息。

微信小程序 WeUI.js

<div id="toast" style="display: none;">
    <div class="weui_mask_transparent"></div>
    <div class="weui_toast">
        <i class="weui_icon_toast"></i>
        <p class="weui_toast_content">已完成</p>
    </div>
</div>

微信小程序 WeUI.js

<div id="loadingToast" class="weui_loading_toast" style="display:none;">
    <div class="weui_mask_transparent"></div>
    <div class="weui_toast">
        <div class="weui_loading">
            <!-- :) -->
            <div class="weui_loading_leaf weui_loading_leaf_0"></div>
            <div class="weui_loading_leaf weui_loading_leaf_1"></div>
            <div class="weui_loading_leaf weui_loading_leaf_2"></div>
            <div class="weui_loading_leaf weui_loading_leaf_3"></div>
            <div class="weui_loading_leaf weui_loading_leaf_4"></div>
            <div class="weui_loading_leaf weui_loading_leaf_5"></div>
            <div class="weui_loading_leaf weui_loading_leaf_6"></div>
            <div class="weui_loading_leaf weui_loading_leaf_7"></div>
            <div class="weui_loading_leaf weui_loading_leaf_8"></div>
            <div class="weui_loading_leaf weui_loading_leaf_9"></div>
            <div class="weui_loading_leaf weui_loading_leaf_10"></div>
            <div class="weui_loading_leaf weui_loading_leaf_11"></div>
        </div>
        <p class="weui_toast_content">数据加载中</p>
    </div>
</div>


Msg Page

结果页通常来说可以认为进行一系列操作步骤后,作为流程结束的总结性页面。结果页的作用主要是告知用户操作处理结果以及必要的相关细节(可用于确认之前的操作是否有误)等信息;若该流程用于开启或关闭某些重要功能,可在结果页增加与该功能相关的描述性内容;除此之外,结果页也可以承载一些附加价值操作,例如提供抽奖、关注公众号等功能入口。

微信小程序 WeUI.js

<div class="weui_msg">
    <div class="weui_icon_area"><i class="weui_icon_success weui_icon_msg"></i></div>
    <div class="weui_text_area">
        <h2 class="weui_msg_title">操作成功</h2>
        <p class="weui_msg_desc">内容详情,可根据实际需要安排</p>
    </div>
    <div class="weui_opr_area">
        <p class="weui_btn_area">
            <a href="#" class="weui_btn weui_btn_primary">确定</a>
            <a href="#" class="weui_btn weui_btn_default">取消</a>
        </p>
    </div>
    <div class="weui_extra_area">
        <a href="">查看详情</a>
    </div>
</div>


Article

文字视图显示大段文字,这些文字通常是页面上的主体内容。Article 支持分段、多层标题、引用、内嵌图片、有/无序列表等富文本样式,并可响应用户的选择操作。

在微信客户端 webview 中使用 Article,必须保证文字有足够的可读性和可辨识性、使用规范字体、保证足够的段间距、段首无缩进。

微信小程序 WeUI.js

<article class="weui_article">
    <h1>大标题</h1>
    <section>
        <h2 class="title">章标题</h2>
        <section>
            <h3>1.1 节标题</h3>
            <p>Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod
                tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam,
                quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo
                consequat. Duis aute</p>
        </section>
        <section>
            <h3>1.2 节标题</h3>
            <p>Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod
                tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam,
                cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non
                proident, sunt in culpa qui officia deserunt mollit anim id est laborum.</p>
        </section>
    </section>
</article>


ActionSheet

ActionSheet 用于显示包含一系列可交互的动作集合,包括说明、跳转等。由底部弹出,一般用于响应用户对页面的点击。

微信小程序 WeUI.js

<div id="actionSheet_wrap">
    <div class="weui_mask_transition" id="mask"></div>
    <div class="weui_actionsheet" id="weui_actionsheet">
        <div class="weui_actionsheet_menu">
            <div class="weui_actionsheet_cell">示例菜单</div>
            <div class="weui_actionsheet_cell">示例菜单</div>
            <div class="weui_actionsheet_cell">示例菜单</div>
            <div class="weui_actionsheet_cell">示例菜单</div>
        </div>
        <div class="weui_actionsheet_action">
            <div class="weui_actionsheet_cell" id="actionsheet_cancel">取消</div>
        </div>
    </div>
</div>


Icon

微信小程序 WeUI.js

<i class="weui_icon_msg weui_icon_success"></i>
<i class="weui_icon_msg weui_icon_info"></i>
<i class="weui_icon_msg weui_icon_warn"></i>
<i class="weui_icon_msg weui_icon_waiting"></i>
<i class="weui_icon_safe weui_icon_safe_success"></i>
<i class="weui_icon_safe weui_icon_safe_warn"></i>
<div class="icon_sp_area">
    <i class="weui_icon_success"></i>
    <i class="weui_icon_success_circle"></i>
    <i class="weui_icon_success_no_circle"></i>
    <i class="weui_icon_info"></i>
    <i class="weui_icon_waiting"></i>
    <i class="weui_icon_waiting_circle"></i>
    <i class="weui_icon_circle"></i>
    <i class="weui_icon_warn"></i>
    <i class="weui_icon_download"></i>
    <i class="weui_icon_info_circle"></i>
    <i class="weui_icon_cancel"></i>
</div>


技术支持与反馈

欢迎前往 GitHub 留言或反馈。
